VTF180-2N42419 - Photoelectric sensors

Product Overview

SICK

Part number	VTF180-2N42419
Manufacturer	SICK
File Size	786.40 KB
Description	Photoelectric sensors
Datasheet	VTF180-2N42419 Datasheet

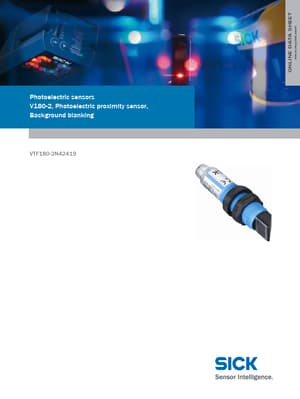

Additional preview pages of the VTF180-2N42419 datasheet.

Sensor/detection principle: Photoelectric proximity sensor, Background blanking Housing design (light emission): Cylindrical, angled Housing length: 83.8 mm Optical axis: Sensing range max. : Sensing range: radial 1 mm 130 mm 1) 1 mm 100 mm 2) Type of light: Light source: Visible red light LED 3) Wave length: 645 nm Focus: Focused approx. 7 mm at 60 mm distance Adjustment: Potentiometer, 270 ° Light spot size (distance): Ø 8 mm (100 mm) 1) 2) 3) Object with 90 % reflectance.
