VTF180-2N42414 - Photoelectric sensors

Name: VTF180-2N42414
SKU: VTF180-2N42414-957010

SICK

The VTF180-2N42414 by SICK is a Photoelectric sensors. Below is the official datasheet preview.

Datasheet Details

Part number	VTF180-2N42414
Manufacturer	SICK
File Size	784.80 KB
Description	Photoelectric sensors
Datasheet	VTF180-2N42414-SICK.pdf

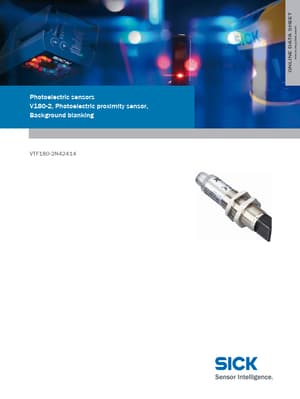

Additional preview pages of the VTF180-2N42414 datasheet.

Sensor/detection principle: Photoelectric proximity sensor, Background blanking Housing design (light emission): Cylindrical, angled Housing length: 83.8 mm Optical axis: Sensing range max. : Sensing range: radial 1 mm 130 mm 1) 1 mm 100 mm 2) Type of light: Light source: Visible red light LED 3) Wave length: 645 nm Focus: Focused approx. 7 mm at 60 mm distance Adjustment: Potentiometer, 270 ° Light spot size (distance): Ø 8 mm (100 mm) 1) 2) 3) Object with 90 % reflectance.
