VTF180-2N41117 - Photoelectric sensors

Name: VTF180-2N41117
SKU: VTF180-2N41117-957030

SICK

The VTF180-2N41117 by SICK is a Photoelectric sensors. Below is the official datasheet preview.

Datasheet Details

Part number	VTF180-2N41117
Manufacturer	SICK
File Size	860.27 KB
Description	Photoelectric sensors
Datasheet	VTF180-2N41117-SICK.pdf

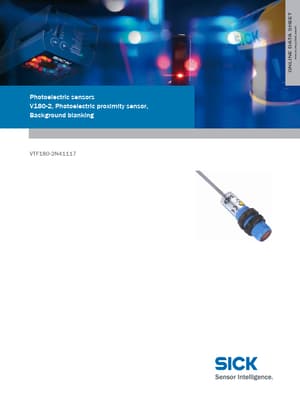

Additional preview pages of the VTF180-2N41117 datasheet.

Sensor/detection principle: Photoelectric proximity sensor, Background blanking Housing design (light emission): Cylindrical, straight Housing length: 62.5 mm Thread diameter (housing): M18 x 1 Optical axis: Sensing range max. : Sensing range: Axial 1 mm 140 mm 1) 1 mm 100 mm 2) Type of light: Light source: Visible red light LED 3) Wave length: 645 nm Focus: Focused, focus approx. 7 mm at 60 mm Adjustment: Potentiometer, 270 ° Light spot size (distance): Ø 8 mm (100 mm) 1).
