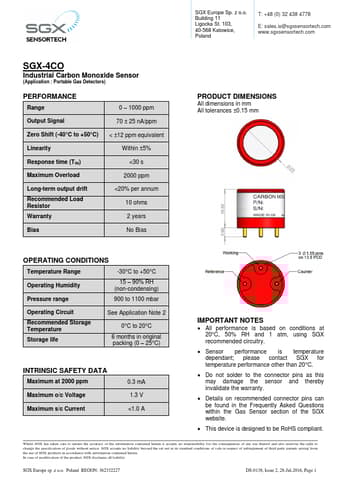

SGX-4CO
Industrial Carbon Monoxide Sensor
(Application : Portable Gas Detectors)
PERFORMANCE
Range Output Signal
0 – 1000 ppm 70 ± 25 nA/ppm
Zero Shift (-40°C to +50°C) < ±12 ppm equivalent
Linearity
Within ±5%
Response time (T90) Maximum Overload
<30 s 2000 ppm
Long-term output drift
Recommended Load Resistor
Warranty
<20% per annum 10 ohms 2 years
Bias
No Bias
SGX Europe Sp. z o.o. Building 11 Ligocka St. 103, 40-568 Katowice, Poland
T: +48 (0) 32 438 4778
E: sales.is@sgxsensortech.com www.sgxsensortech.com
PRODUCT DIMENSIONS
All dimensions in mm All tolerances ±0.
SGX-4CO Datasheet
