SW20N60U MOSFET

SW20N60U Description

SAMWIN SW20N60U N-channel TO-3P MOSFET .
This power MOSFET is produced with advanced VDMOS technology of SAMWIN.

SW20N60U Features

* TO-3P
* High ruggedness
* RDS(ON) (Max0.45Ω)@VGS=10V
* Gate Charge (Typical 108nC)
* Improved dv/dt Capability

📥 Download Datasheet

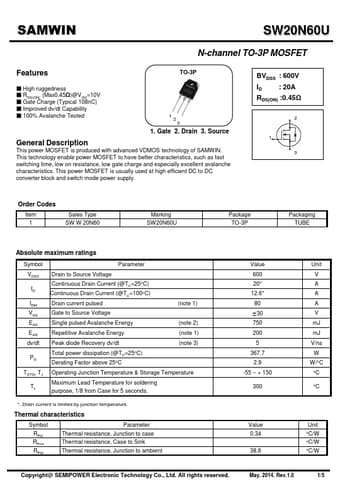

Preview of SW20N60U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW20N60U
Manufacturer
SEMIPOWER
File Size
636.73 KB
Datasheet
SW20N60U-SAMWIN.pdf
Description
MOSFET
