DKI06186 - N Channel Trench Power MOSFET

Product Overview

SANKEN

📥 Download Datasheet

DKI06186 N Channel Trench Power MOSFET by SANKEN - Datasheet Preview — Datasheet preview – DKI06186

Datasheet Details

Part number	DKI06186
Manufacturer	Sanken
File Size	682.41 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI06186 Datasheet

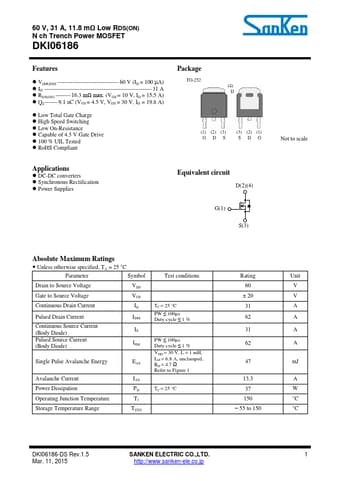

Additional preview pages of the DKI06186 datasheet.

Product details

Features

V(BR)DSS --------------------------------- 60 V (ID = 100 µA).
ID ---------------------------------------------------------- 31 A.
RDS(ON) -------- 16.3 mΩ max. (VGS = 10 V, ID = 15.5 A).
Qg------- 9.1 nC (VGS = 4.5 V, VDS = 30 V, ID = 19.8 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
