DKI06108 - N Channel Trench Power MOSFET

Product Overview

SANKEN

📥 Download Datasheet

DKI06108 N Channel Trench Power MOSFET by SANKEN - Datasheet Preview — Datasheet preview – DKI06108

Datasheet Details

Part number	DKI06108
Manufacturer	Sanken
File Size	686.23 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI06108 Datasheet

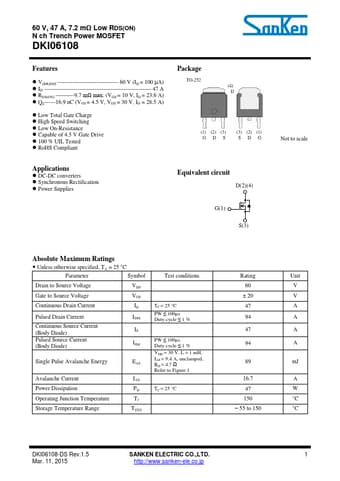

Additional preview pages of the DKI06108 datasheet.

Product details

Features

V(BR)DSS --------------------------------- 60 V (ID = 100 µA).
ID ---------------------------------------------------------- 47 A.
RDS(ON) ----------9.7 mΩ max. (VGS = 10 V, ID = 23.6 A).
Qg------16.9 nC (VGS = 4.5 V, VDS = 30 V, ID = 28.5 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
