DKI03082 - N Channel Trench Power MOSFET

Product Overview

SANKEN

📥 Download Datasheet

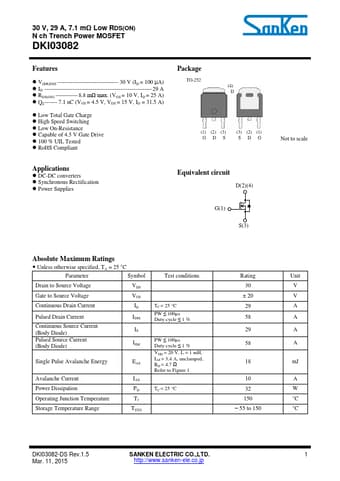

DKI03082 N Channel Trench Power MOSFET by SANKEN - Datasheet Preview — Datasheet preview – DKI03082

Datasheet Details

Part number	DKI03082
Manufacturer	Sanken
File Size	683.49 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI03082 Datasheet
Additional preview pages of the DKI03082 datasheet.

Product details

Features

V(BR)DSS --------------------------------- 30 V (ID = 100 µA).
ID ---------------------------------------------------------- 29 A.
RDS(ON) ------------ 8.8 mΩ max. (VGS = 10 V, ID = 25 A).
Qg------- 7.1 nC (VGS = 4.5 V, VDS = 15 V, ID = 31.5 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
