DKI04077 - N Channel Trench Power MOSFET

Product Overview

SANKEN

📥 Download Datasheet

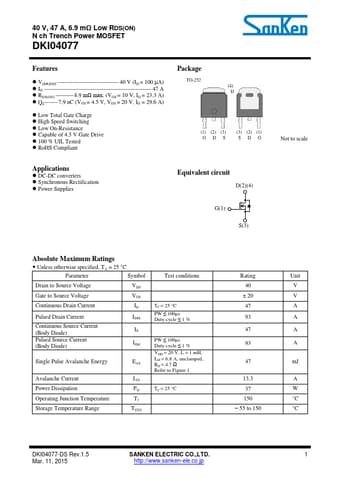

DKI04077 N Channel Trench Power MOSFET by SANKEN - Datasheet Preview — Datasheet preview – DKI04077

Datasheet Details

Part number	DKI04077
Manufacturer	Sanken
File Size	683.53 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI04077 Datasheet
Additional preview pages of the DKI04077 datasheet.

Product details

Features

V(BR)DSS --------------------------------- 40 V (ID = 100 µA).
ID ---------------------------------------------------------- 47 A.
RDS(ON) ----------8.9 mΩ max. (VGS = 10 V, ID = 23.3 A).
Qg------- 7.9 nC (VGS = 4.5 V, VDS = 20 V, ID = 29.6 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
