DKI04035 - N Channel Trench Power MOSFET

Product Overview

SANKEN

📥 Download Datasheet

DKI04035 N Channel Trench Power MOSFET by SANKEN - Datasheet Preview — Datasheet preview – DKI04035

Datasheet Details

Part number	DKI04035
Manufacturer	Sanken
File Size	683.41 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI04035 Datasheet

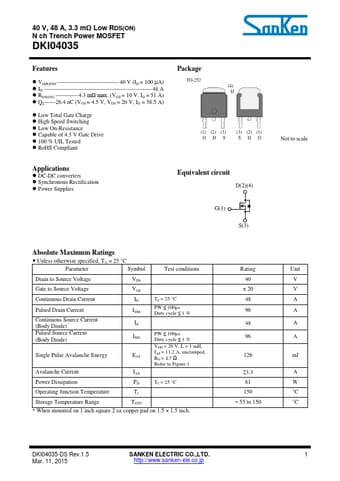

Additional preview pages of the DKI04035 datasheet.

Product details

Features

V(BR)DSS --------------------------------- 40 V (ID = 100 µA).
ID ---------------------------------------------------------- 48 A.
RDS(ON) ------------ 4.3 mΩ max. (VGS = 10 V, ID = 51 A).
Qg------26.4 nC (VGS = 4.5 V, VDS = 20 V, ID = 58.5 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
