LUM-115HMU308 - dot matrix unit

Rohm

📥 Download Datasheet

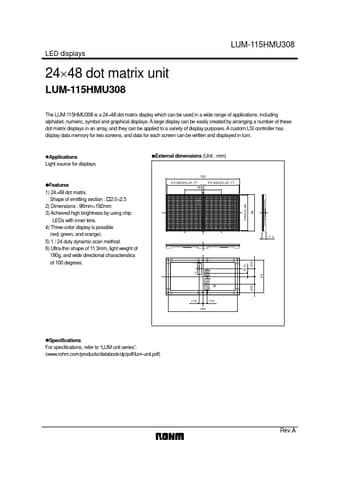

LUM-115HMU308 Datasheet Preview — Preview of LUM-115HMU308 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-115HMU308
Manufacturer	ROHM
File Size	83.55 KB
Description	dot matrix unit
Datasheet	LUM-115HMU308_Rohm.pdf

LUM-115HMU308 Product details

Features

1) 24×48 dot matrix. Shape of emitting section : 2.0×2.5 2) Dimensions : 96mm×192mm 3) Achieved high brightness by using chip LEDs with inner lens. 4) Three-color display is possible (red, green, and orange). 5) 1 / 24 duty dynamic scan method. 6) Ultra-thin shape of 11.3mm, light weight of 180g, and wide directional characteristics of 100 degrees. P3.99X23=91.77 96 P3.99X23=91.77 P4X23=92 96 11.3 1 CN1 (10) 180 (10) zSpecifications For specifications, refer to “LUM unit series”. (www.
