LUMA120, LUMA105 - Glass Passivated Junction Ultra Fast Rectifiers

Datasheet Details

Part number	LUMA120, LUMA105
Manufacturer	LRC
File Size	178.00 KB
Description	Glass Passivated Junction Ultra Fast Rectifiers

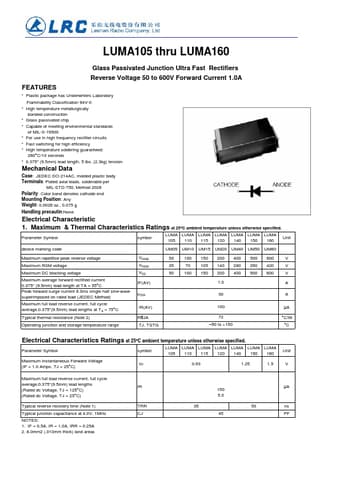

Datasheet	LUMA105-LRC.pdf
Note	This datasheet PDF includes multiple part numbers: LUMA120, LUMA105. Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated chip.
Capable of meeting environmental standards of MIL-S-19500.
For use in high frequency rectifier circuits.
Fast switching for high efficiency.
High temperature soldering guaranteed: 260°C/10 seconds.
0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data Case: JEDEC DO-214AC, molded pla.
