LUM-115HML302 - dot matrix unit

Rohm

📥 Download Datasheet

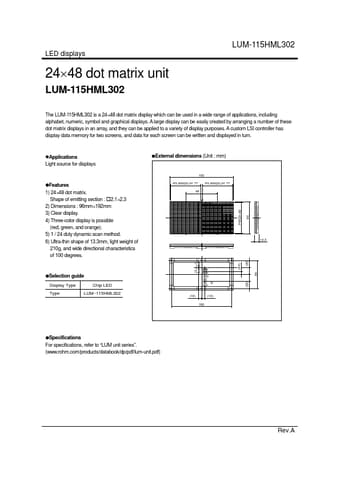

LUM-115HML302 Datasheet Preview — Preview of LUM-115HML302 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-115HML302
Manufacturer	ROHM
File Size	84.53 KB
Description	dot matrix unit
Datasheet	LUM-115HML302_Rohm.pdf

LUM-115HML302 Product details

Features

1) 24×48 dot matrix. Shape of emitting section : 2.1×2.3 2) Dimensions : 96mm×192mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 24 duty dynamic scan method. 6) Ultra-thin shape of 13.3mm, light weight of 210g, and wide directional characteristics of 100 degrees. P3.99X23=91.77 96 P3.99X23=91.77 P4X23=92 96 13.3 CN3 13 1 6 13 (8.4) CN2 (20) (20) 84 Display Type Type Chip LED LUM.
115HML302 (10) 180 CN1 1 zSelection guide 1 (10) zS.
