LD-101 - Flat displays

Datasheet Details

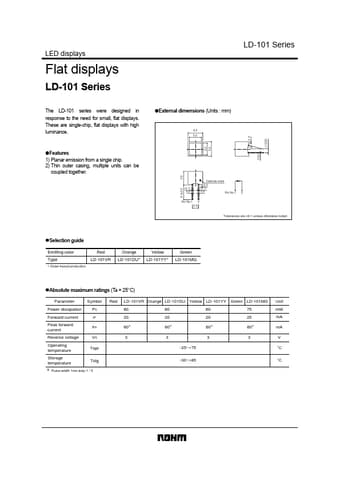

1) Planar emission from a single chip. 2) Thin outer casing, multiple units can be coupled together. 5.6 (0.7) 0.6 5.0 6.0 Cathode mark 0.5 6.0±0.5 (0.7) 0.6 Pin No.1 2 Pin No.1 2 (2.5) Tolerances are ±0.1 unless otherwise noted: !Selection guide Emitting color Type ∗ Order-based production. Red LD-101VR Orange LD-101DU∗ Yellow LD-101YY∗ Green LD-101MG !Absolute maximum ratings (Ta = 25°C) Parameter Power dissipation Forward current Peak forward current Reverse voltage Operating.
