LD-001 - Flat displays

Datasheet Details

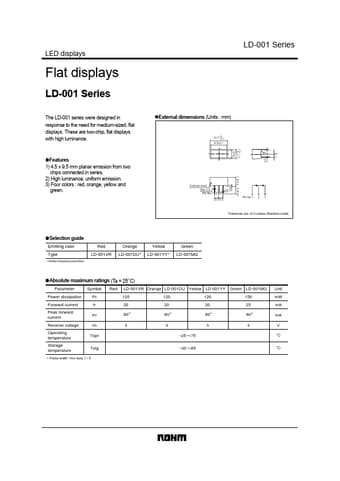

1) 4.5 x 9.5 mm planar emission from two chips connected in series. 2) High luminance, uniform emission. 3) Four colors : red, orange, yellow and green. Cathode mark Max.0.8 Pin No.1 2 3 (2.5) (2.5) 0.6 5.6±0.1 Pin No.1 2 Tolerances are ±0.3 unless otherwise noted: !Selection guide Emitting color Type ∗Order-based production. Red LD-001VR Orange LD-001DU∗ Yellow LD-001YY∗ Green LD-001MG !Absolute maximum ratings (Ta = 25°C) Parameter Power dissipation Forward current Peak forward cur.
