LD-1064-FBG-400 - Fiber Bragg Grating wavelength locked High Power Laser Diode

Features

  • FBG wavelength stabilized.
  • 400mW output power ex-single mode fiber.
  • Available wavelength range 1000-1130nm.
  • Proprietary mirror coating technology enabling high reliability.
  • Polarization maitaining PM980 fiber.
  • Individual burn-in and thermal cycling screening.
  • RoHS compliance.

📥 Download Datasheet

Datasheet Details

Part number LD-1064-FBG-400
Manufacturer Innolume
File Size 870.35 KB
Description Fiber Bragg Grating wavelength locked High Power Laser Diode
Datasheet download datasheet LD-1064-FBG-400 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LD-101 Flat displays Rohm
LD-160 Single Heterojunction Stacked Diode Lasers Laser Diode
LD-160F Single Heterojunction Stacked Diode Lasers Laser Diode
LD-161 Single Heterojunction Stacked Diode Lasers Laser Diode
LD-162 Single Heterojunction Stacked Diode Lasers Laser Diode

Other Datasheets by Innolume

Part Number Description
LD-1122-FBG-400 Fiber Bragg Grating wavelength locked High Power Laser Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

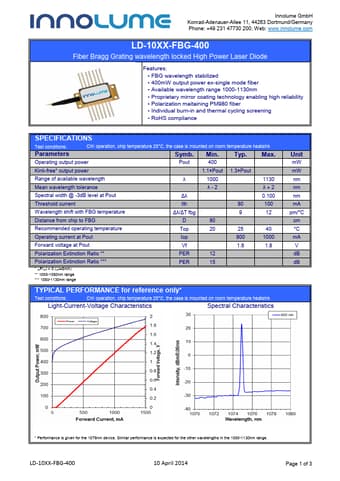

Innolume GmbH Konrad-Adenauer-Allee 11, 44263 Dortmund/Germany Phone: +49 231 47730 200; Web: www.innolume.com LD-10XX-FBG-400 Fiber Bragg Grating wavelength locked High Power Laser Diode Features: • FBG wavelength stabilized • 400mW output power ex-single mode fiber • Available wavelength range 1000-1130nm • Proprietary mirror coating technology enabling high reliability • Polarization maitaining PM980 fiber • Individual burn-in and thermal cycling screening • RoHS compliance SPECIFICATIONS Test conditions: Parameters CW operation, chip temperature 25°C, the case is mounted on room temperature heatsink Symb. Min. Typ. Max. Operating output power Pout 400 Kink-free* output power 1.1×Pout 1.
