BU2099FV - serial-IN/parallel-OUT driver

BU2099FV Description

Datasheet Serial-in / Parallel-out Driver Series 4-input Serial-in / Parallel-out Drivers BU2099FV .
BU2099FV is an open drain output driver.

BU2099FV Features

* LED can be driven directly
* 12bit parallel outputs

BU2099FV Applications

* Drive of LED
* Drive of Solenoid
* Drive of Relay SSOP-B20 BU2092FV Pin Configurations VSS 1 N. C. 2 DATA 3 CLOCK 4 LCK 5 Q0 6 Q1 7 Q2 8 Q3 9 Q4 10 (Top View) 20 VDD 19 OE 18 SO 17 Q11 16 Q10 15 Q9 14 Q8 13 Q7 12 Q6 11 Q5 Block Diagrams CLOCK DATA Controller Shift Register SO

📥 Download Datasheet

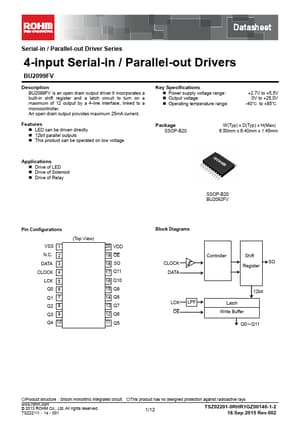

Preview of BU2099FV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU2099FV
Manufacturer
ROHM ↗
File Size
686.62 KB
Datasheet
BU2099FV_Rohm.pdf
Description
serial-IN/parallel-OUT driver
