BU2092FV - serial-IN/parallel-OUT driver

Rohm

📥 Download Datasheet

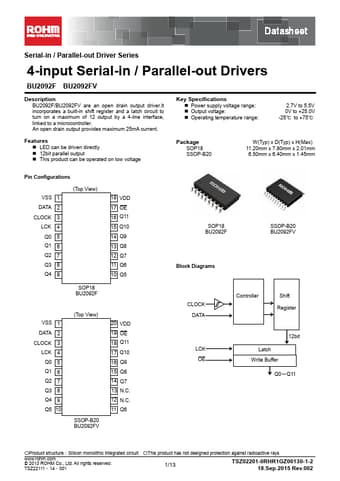

BU2092FV Datasheet Preview — Preview of BU2092FV PDF

Datasheet Details

Part number	BU2092FV
Manufacturer	ROHM
File Size	878.25 KB
Description	serial-IN/parallel-OUT driver
Datasheet	BU2092FV_Rohm.pdf

BU2092FV Product details

Description

BU2092F/BU2092FV are an open drain output driver.It incorporates a built-in shift register and a latch circuit to turn on a maximum of 12 output by a 4-line interface, linked to a microcontroller. Power supply voltage range: Output voltage: Operating temperature range: 2.7V to 5.5V 0V to +25.0V -25℃ to +75℃

Features

LED can be driven directly.
12bit parallel output.
This product can be operated on low voltage Package SOP18 SSOP-B20 W(Typ) x D(Typ) x H(Max) 11.20mm x 7.80mm x 2.01mm 6.50mm x 6.40mm x 1.45mm Pin Configurations VSS 1 DATA 2 CLOCK 3 LCK 4 Q0 5 Q1 6 Q2 7 Q3 8 Q4 9 (Top View) SOP18 BU2092F 18 VDD 17 OE 16 Q11 15 Q10 14 Q9 13 Q8 12 Q7 11 Q6 10 Q5 VSS 1 DATA 2 CLOCK 3 LCK 4 Q0 5 Q1 6 Q2 7 Q3 8 Q4 9 Q5 10 (Top View) SSOP-B20 BU2092FV 20 VDD 19 OE 18.
