BD9528MUV - Main Power Supply ICs

Name: BD9528MUV
SKU: BD9528MUV-716792

Rohm

📥 Download Datasheet

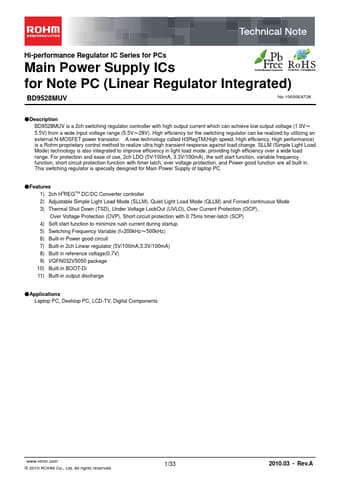

BD9528MUV Datasheet Preview — Preview of BD9528MUV PDF

Datasheet Details

Part number	BD9528MUV
Manufacturer	ROHM
File Size	1.65 MB
Description	Main Power Supply ICs
Datasheet	BD9528MUV_Rohm.pdf

BD9528MUV Product details

Description

BD9528MUV is a 2ch switching regulator controller with high output current which can achieve low output voltage (1.0V～ 5.5V) from a wide input voltage range (5.5V～28V).

Features

2ch H3REGTM DC/DC Converter controller 2) Adjustable Simple Light Load Mode (SLLM), Quiet Light Load Mode (QLLM) and Forced continuous Mode 3) Thermal Shut Down (TSD), Under Voltage LockOut (UVLO), Over Current Protection (OCP), Over Voltage Protection (OVP), Short circuit protection with 0.75ms timer-latch (SCP) 4) Soft start function to minimize rush current during startup 5) Switching Frequency Variable (f=200kHz～500kHz) 6) Built-in Power good circuit 7) Built-in 2ch Linear regulator (5V/100m.
