BD9528AMUV - PCs Main Power Supply

Name: BD9528AMUV
SKU: BD9528AMUV-716793

Rohm

📥 Download Datasheet

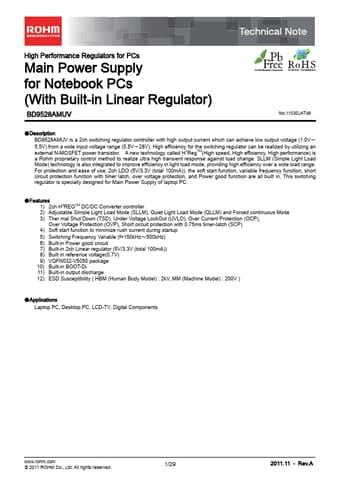

BD9528AMUV Datasheet Preview — Preview of BD9528AMUV PDF

Datasheet Details

Part number	BD9528AMUV
Manufacturer	ROHM
File Size	1.05 MB
Description	PCs Main Power Supply
Datasheet	BD9528AMUV_Rohm.pdf

BD9528AMUV Product details

Description

BD9528AMUV is a 2ch switching regulator controller with high output current which can achieve low output voltage (1.0V～ 5.5V) from a wide input voltage range (5.5V～28V).

Features

M 1) 2ch H REG DC/DC Converter controller 2) Adjustable Simple Light Load Mode (SLLM), Quiet Light Load Mode (QLLM) and Forced continuous Mode 3) Ther mal Shut Down (TSD), Under Voltage LockOut (UVLO), Over Current Protection (OCP), Over Voltage Protection (OVP), Short circuit protection with 0.75ms timer-latch (SCP) 4) Soft start function to minimize rush current during startup 5) Switching Frequency Variable (f=150kHz～500kHz) 6) Built-in Power good circuit 7) Built-in 2ch Linear regulator (5V/.
