BD8165MUV - Multi-Channel Power IC

BD8165MUV Description

STRUCTURE Silicon Monolithic Integrated Circuit PRODUCT NAME Multi-Channel Power IC TYPE ＢＤ８１６５ＭＵＶ .

BD8165MUV Features

* Built-in 5-channel outputs for TFT-LCD Display Built-in VCOM AMP
* ABSOLUTE MAXIMUM RATINGS (Ta=25℃) PARAMETER SYMBOL LIMITS UNIT Supply Voltage 1 VCC,PVCC2,3 15 V Supply Voltage 2 LDVCC1 7 V Supply Voltage 3 HVCC 20 V SW1 Voltage VSW1 22 V Junction Temperature Tjmax 150 ℃ Pow

📥 Download Datasheet

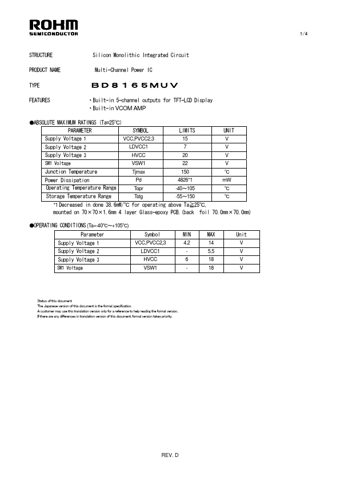

Preview of BD8165MUV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8165MUV
Manufacturer
ROHM ↗
File Size
158.97 KB
Datasheet
BD8165MUV-Rohm.pdf
Description
Multi-Channel Power IC
