BD8162AEKV - Multi-channel System Power Supply IC + Gamma Buffer

BD8162AEKV Description

Datasheet Power Supply IC Series for TFT-LCD Panels Multi-channel System Power Supply IC + Gamma Buffer BD8162AEKV General .
The BD8162AEKV is a system power supply IC that provides control 6 power supply channels and 4 gamma output channels + VCOM required for TFT-LCD panel.

BD8162AEKV Features

* Step-up DC/DC Converter with Built-in 3A FET
* Step-down DC/DC Converter with Built-in 2A FET
* Synchronous Rectification Step-down DC/DC Converter with Built-in 2A FET
* 3ch LDO Regulator (500mA, 200mA, 20mA)
* Positive/Negative Charge Pumps
* 4ch Gamma Buffer Amplifier +

BD8162AEKV Applications

* LCD TV power supplies ○Product structure：Silicon monolithic integrated circuit www. rohm. com © 2016 ROHM Co. , Ltd. All rights reserved. TSZ2211114001 ○This product has no designed protection against radioactive rays 1/26 TSZ02201-0323AAF00690-1-2 15.Feb.2016 Rev.001 BD8162AEKV Typical Applicatio

📥 Download Datasheet

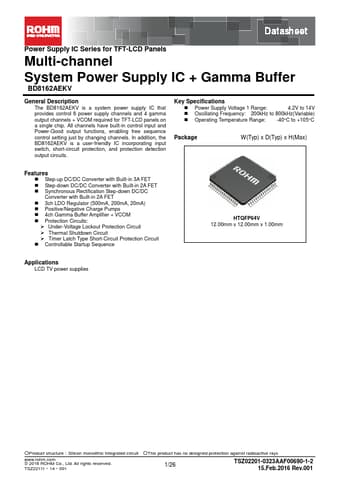

Preview of BD8162AEKV PDF
