BD8163EFV - 5V Input Multi-channel Power-Supply

BD8163EFV Description

Power Supply ICs for TFT-LCD Panels 5V Input Multi-channel System Power Supply ICs BD8163EFV No.10035EAT13 *.
The BD8163EFV is a system power supply IC for TFT panels.

BD8163EFV Features

* 1) Operates in an operating voltage range as low as 2.1 V to 6. 0 V. 2) Incorporates a step-up DC/DC converter. 3) Incorporates a 2.5 V regulator. 4) Incorporates positive and negative-side charge pumps. 5) Switching frequency of 1100 kHz 6) DC/DC converter feedback voltage of 1.24 V ± 1% 7) Incorpo

BD8163EFV Applications

* Liquid crystal TV, PC monitor, and TFT-LCD panel
* Absolute maximum ratings (Ta = 25℃) Parameter Symbol Ratings Unit Power supply voltage VCC 7 Vo1 voltage Vo1 19 Vo2 voltage Vo2 32 SW voltage Vsw 19 Maximum junction temperature Tjmax 150 Power dissipation Pd 1100
* Operatin

📥 Download Datasheet

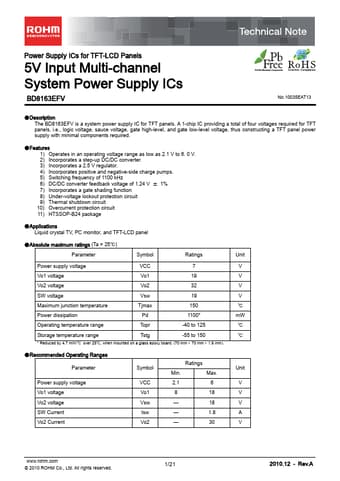

Preview of BD8163EFV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8163EFV
Manufacturer
ROHM ↗
File Size
473.86 KB
Datasheet
BD8163EFV-Rohm.pdf
Description
5V Input Multi-channel Power-Supply
