RTQ2833A - 3A 18V High-Efficiency Step-Down Converter

Name: RTQ2833A
SKU: RTQ2833A-1594313

Richtek

📥 Download Datasheet

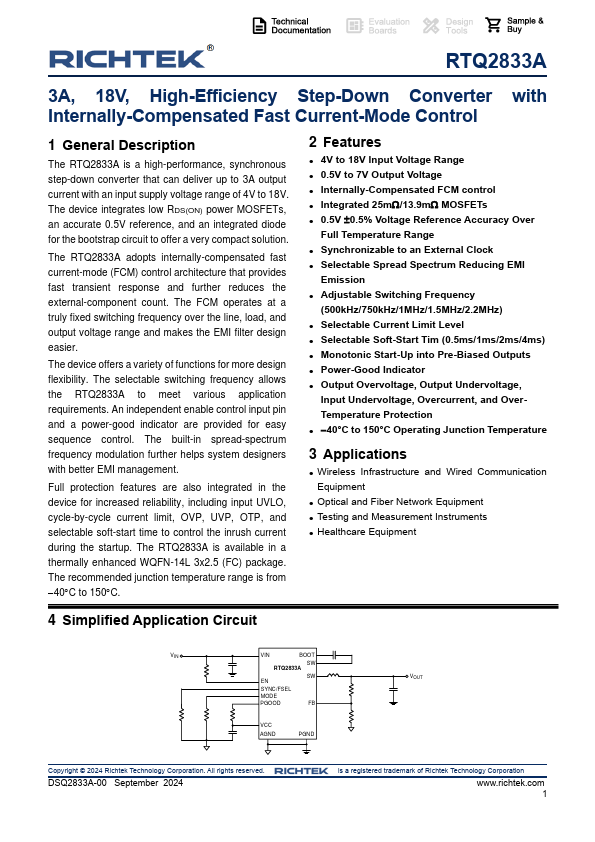

RTQ2833A Datasheet Preview — Preview of RTQ2833A PDF

Datasheet Details

Part number	RTQ2833A
Manufacturer	Richtek
File Size	1.69 MB
Description	3A 18V High-Efficiency Step-Down Converter
Datasheet	RTQ2833A-Richtek.pdf

RTQ2833A Product details

Description

The RTQ2833A is a high-performance, synchronous step-down converter that can deliver up to 3A output current with an input supply voltage range of 4V to 18V.

Features

are also integrated in the device for increased reliability, including input UVLO, cycle-by-cycle current limit, OVP, UVP, OTP, and selectable soft-start time to control the inrush current during the startup. The RTQ2833A is available in a thermally enhanced WQFN-14L 3x2.5 (FC) package. The recommended junction temperature range is from.
40C to 150C. 2 Features.
4V to 18V Input Voltage Range.
0.5V to 7V Output Voltage.
Internally-Compensated FCM control.
Integrated.
