RTQ030P02TR - DC-DC Converter (20V/ 3.0A)

Features

  • 1) Low On-resistance. (110mΩ at 2.5V) 2) High Power Package. 3) High speed switching. 4) Low voltage drive. (2.5V) zExternal dimensions (Units : mm) TSMT6 2.8 1.6 (3) (2) (1) (4) (5) (6) 0.16 0.4 Each lead has same dimensions Abbreviatedsymbol : TS z.

📥 Download Datasheet

Datasheet Details

Part number RTQ030P02TR
Manufacturer ROHM
File Size 94.67 KB
Description DC-DC Converter (20V/ 3.0A)
Datasheet download datasheet RTQ030P02TR Datasheet

📁 Similar Datasheet

  • RTQ1741A - High Efficiency Single Inductor Buck-Boost Converter (Richtek)
  • RTQ2071-QA - Automotive CIS/CCM PMIC (Richtek)
  • RTQ2072-QA - Automotive CIS/CCM PMIC (Richtek)
  • RTQ2072-QT - Automotive CIS/CCM PMIC (Richtek)
  • RTQ2076-QT - Automotive CIS/CCM PMIC (Richtek)
  • RTQ2079-QF - Functional Safety PMIC (Richtek)
  • RTQ2080-QF - Functional Safety PMIC (Richtek)
  • RTQ2081-QF - Functional Safety PMIC (Richtek)
  • RTQ2082-QT - Automotive CIS/CCM PMIC (Richtek)
  • RTQ2102A - Synchronous Step-Down Converter (Richtek)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

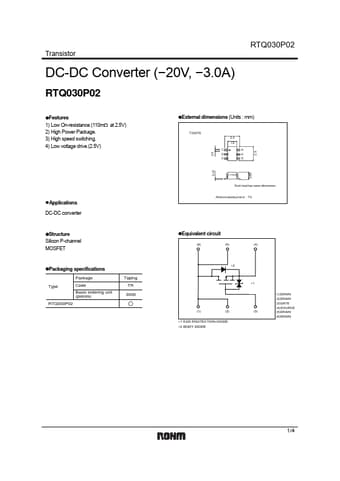

RTQ030P02 Transistor DC-DC Converter (−20V, −3.0A) RTQ030P02 zFeatures 1) Low On-resistance.(110mΩ at 2.5V) 2) High Power Package. 3) High speed switching. 4) Low voltage drive.(2.5V) zExternal dimensions (Units : mm) TSMT6 2.8 1.6 (3) (2) (1) (4) (5) (6) 0.16 0.4 Each lead has same dimensions Abbreviatedsymbol : TS zApplications DC-DC converter zStructure Silicon P-channel MOSFET zEquivalent circuit (6) (5) (4) zPackaging specifications Package Type Code Basic ordering unit (pieces) RTQ030P02 (1) (2) ∗2 Taping TR 3000 ∗1 (1)DRAIN (2)DRAIN (3)GATE (4)SOURCE (5)DRAIN (6)DRAIN 0.85 (3) ∗1 ESD PROTECTION DIODE ∗2 BODY DIODE 2.
