uPD16510A - VERTICAL DRIVER FOR CCD SENSOR

Renesas

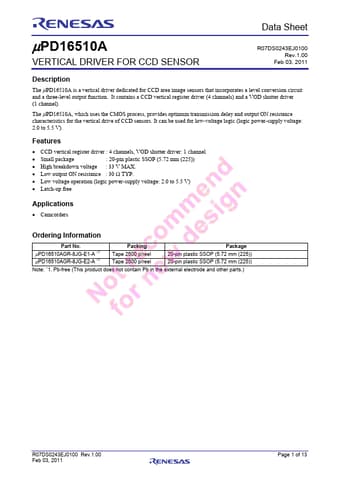

The uPD16510A by Renesas is a VERTICAL DRIVER FOR CCD SENSOR. Below is the official datasheet preview.

📥 Download Datasheet

uPD16510A VERTICAL DRIVER FOR CCD SENSOR by Renesas - Datasheet Preview — Official preview page of the **uPD16510A** VERTICAL DRIVER FOR CCD SENSOR datasheet (Renesas).

Datasheet Details

Part number	uPD16510A
Manufacturer	Renesas
File Size	312.20 KB
Description	VERTICAL DRIVER FOR CCD SENSOR
Datasheet	uPD16510A-Renesas.pdf
Additional preview pages of the uPD16510A datasheet.

uPD16510A Product details

Description

The μPD16510A is a vertical driver dedicated for CCD area image sensors that incorporates a level conversion circuit and a three-level output function.

Features

CCD vertical register driver : 4 channels, VOD shutter driver: 1 channel.
Small package : 20-pin plastic SSOP (5.72 mm (225)).
High breakdown voltage : 33 V MAX.
Low output ON resistance : 30 Ω TYP.
Low voltage operation (logic power-supply voltage: 2.0 to 5.5 V).
Latch-up free.
