UPD160010 - 384-/360-OUTPUT TFT-LCD SOURCE DRIVER

Description

interface.

Which can realize a full-color display of 16,777,216 colors by output of 256 values γ -corrected by an internal D/A converter and 10-by-2 external power modules.

Features

  • Differential interface: CLK, gray scale data,.
  • CMOS interface: STHR(L), R,/L, STB, SB, POL, Osel, Vsel1, Vsel2, SRC, ORC, RxBIAS1, RxBIAS2.
  • 384/360 outputs (Osel).
  • Capable of outputting 256 values by means of 10-by-2 external power modules (20 units) and a D/A converter.
  • Logic power supply voltage (VDD1): 2.7 to 3.6V.
  • Driver power supply voltage (VDD2): 10.0 to 16.5V.
  • High-speed data transfer: fCLK = 190 MHz MAX. (internal data tran.

📥 Download Datasheet

Datasheet Details

Part number UPD160010
Manufacturer NEC
File Size 388.32 KB
Description 384-/360-OUTPUT TFT-LCD SOURCE DRIVER
Datasheet download datasheet UPD160010 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UPD160032A 480-OUTPUT TFT-LCD SOURCE DRIVER Renesas
uPD160088 480-OUTPUT TFT-LCD SOURCE DRIVER Renesas
UPD160300 192-BIT AC-PDP DRIVER NEC Electronics
uPD161608 176-RGB x 220-DOT 1-CHIP DRIVER Renesas
uPD161802 240 OUTPUTS TFT-LCD SOURCE DRIVER Renesas

Other Datasheets by NEC

Part Number Description
UPD160040 384-OUTPUT TFT-LCD SOURCE DRIVER
UPD160040A 384-OUTPUT TFT-LCD SOURCE DRIVER
UPD160040B 384-OUTPUT TFT-LCD SOURCE DRIVER
UPD160061 384-OUTPUT TFT-LCD SOURCE DRIVER
UPD160061A 384-OUTPUT TFT-LCD SOURCE DRIVER

Full PDF Text Transcription

Click to expand full text

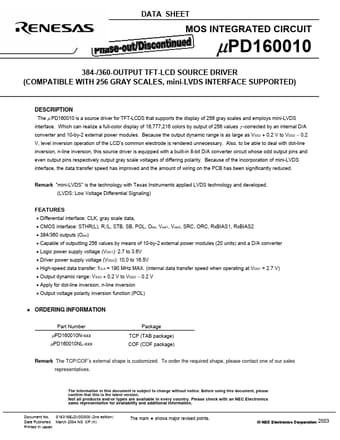

DATA SHEET MOS INTEGRATED CIRCUIT µPD160010 384-/360-OUTPUT TFT-LCD SOURCE DRIVER (COMPATIBLE WITH 256 GRAY SCALES, mini-LVDS INTERFACE SUPPORTED) DESCRIPTION The µ PD160010 is a source driver for TFT-LCDS that supports the display of 256 gray scales and employs mini-LVDS interface. Which can realize a full-color display of 16,777,216 colors by output of 256 values γ -corrected by an internal D/A converter and 10-by-2 external power modules. Because the output dynamic range is as large as VSS2 + 0.2 V to VDD2 − 0.2 V, level inversion operation of the LCD’s common electrode is rendered unnecessary.
