RJP1CS05DWT, IGBT

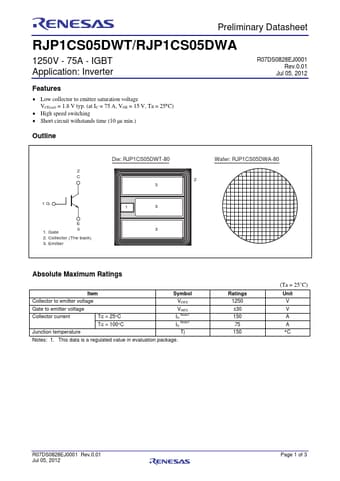

Preliminary Datasheet RJP1CS05DWT/RJP1CS05DWA 1250V - 75A - IGBT Application: Inverter .
of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and appl.

datasheet Preview Page 1 from Datasheet4u.com

RJP1CS05DWT_Renesas.pdf

RJP1CS05DWT Datasheet Preview — Preview of RJP1CS05DWT PDF

Datasheet Details

Part number:

RJP1CS05DWT

Manufacturer:

Renesas ↗

File Size:

129.35 KB

Description:

IGBT

Features

* Low collector to emitter saturation voltage VCE(sat) = 1.8 V typ. (at IC = 75 A, VGE = 15 V, Ta = 25C)
* High speed switching
* Short circuit withstands time (10 s min. ) R07DS0828EJ0001 Rev.0.01 Jul 05, 2012 Outline Die: RJP1CS05DWT-80 2 C 3 Wafer: RJP1CS05DWA-80 2 1G 1 3 1.

Applications

* for each Renesas Electronics product depends on the product's quality grade, as indicated below. "Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; an
