RJP1CS04DWT, IGBT

Preliminary Datasheet RJP1CS04DWT/RJP1CS04DWA 1250V - 50A - IGBT Application: Inverter .
of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and appl.

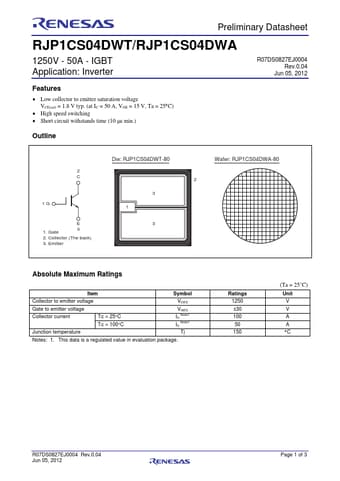

datasheet Preview Page 1 from Datasheet4u.com

RJP1CS04DWT_Renesas.pdf

RJP1CS04DWT Datasheet Preview — Preview of RJP1CS04DWT PDF

Datasheet Details

Part number:

RJP1CS04DWT

Manufacturer:

Renesas ↗

File Size:

128.94 KB

Description:

IGBT

Features

* Low collector to emitter saturation voltage VCE(sat) = 1.8 V typ. (at IC = 50 A, VGE = 15 V, Ta = 25C)
* High speed switching
* Short circuit withstands time (10 s min. ) R07DS0827EJ0004 Rev.0.04 Jun 05, 2012 Outline Die: RJP1CS04DWT-80 2 C 3 1G 1 Wafer: RJP1CS04DWA-80 2 1. Gate
