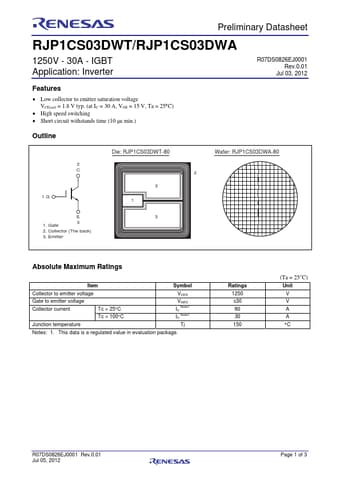

Preliminary Datasheet RJP1CS03DWT/RJP1CS03DWA 1250V - 30A - IGBT Application: Inverter .
of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and appl.

datasheet Preview Page 1 from Datasheet4u.com

RJP1CS03DWT_Renesas.pdf

RJP1CS03DWA Datasheet Preview — This datasheet PDF includes multiple part numbers: RJP1CS03DWA, RJP1CS03DWT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RJP1CS03DWA, RJP1CS03DWT

Manufacturer:

Renesas ↗

File Size:

129.33 KB

Description:

IGBT

Note:

This datasheet PDF includes multiple part numbers: RJP1CS03DWA, RJP1CS03DWT.
Please refer to the document for exact specifications by model.

Features

* Low collector to emitter saturation voltage VCE(sat) = 1.8 V typ. (at IC = 30 A, VGE = 15 V, Ta = 25C)
* High speed switching
* Short circuit withstands time (10 s min. ) R07DS0826EJ0001 Rev.0.01 Jul 03, 2012 Outline Die: RJP1CS03DWT-80 2 C 3 1G 1 Wafer: RJP1CS03DWA-80 2 1. Gate 2
