PS2502-1 - HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR

Name: PS2502-1
SKU: PS2502-1-1577694

Renesas

📥 Download Datasheet

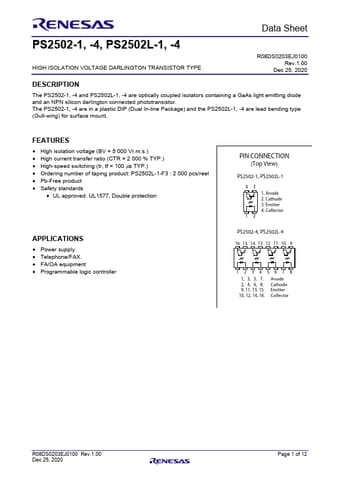

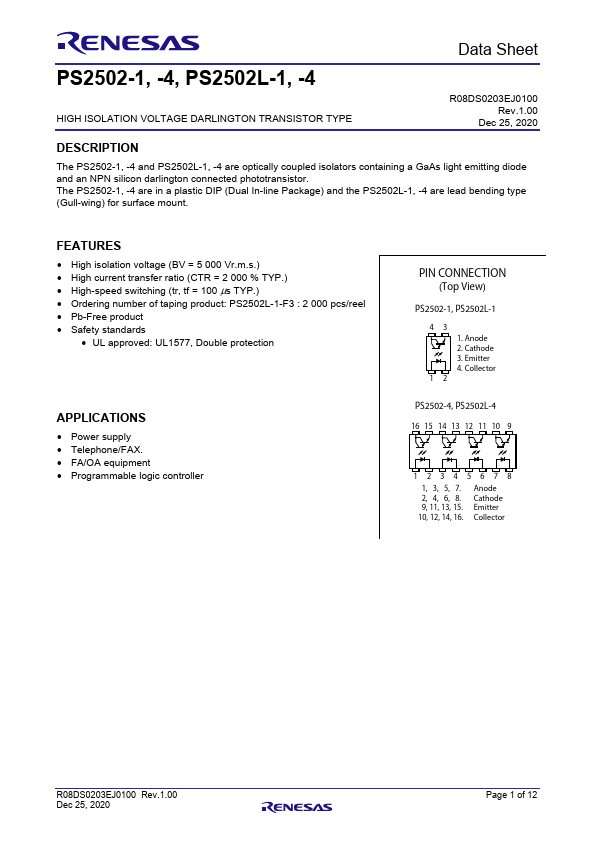

PS2502-1 Datasheet Preview — Preview of PS2502-1 PDF

Datasheet Details

Part number	PS2502-1
Manufacturer	Renesas
File Size	5.08 MB
Description	HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR
Datasheet	PS2502-1-Renesas.pdf

PS2502-1 Product details

Description

The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor.

Features

High isolation voltage (BV = 5 000 Vr. m. s. ).
High current transfer ratio (CTR = 2 000 % TYP. ).
High-speed switching (tr, tf = 100 s TYP. ).

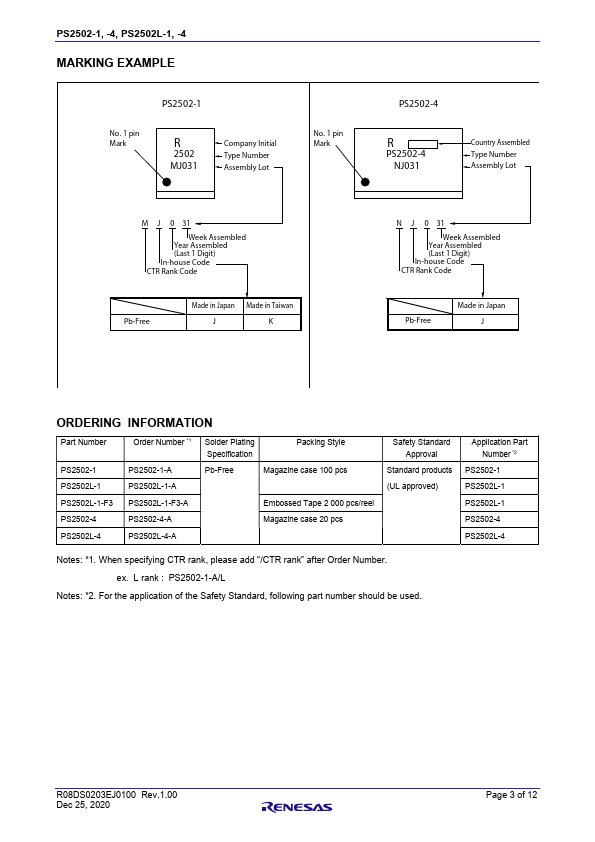

Ordering number of taping product: PS2502L-1-F3 : 2 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: UL1577, Double protection.
