PS2502L-4, PS2502-1 - HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR

Renesas

📥 Download Datasheet

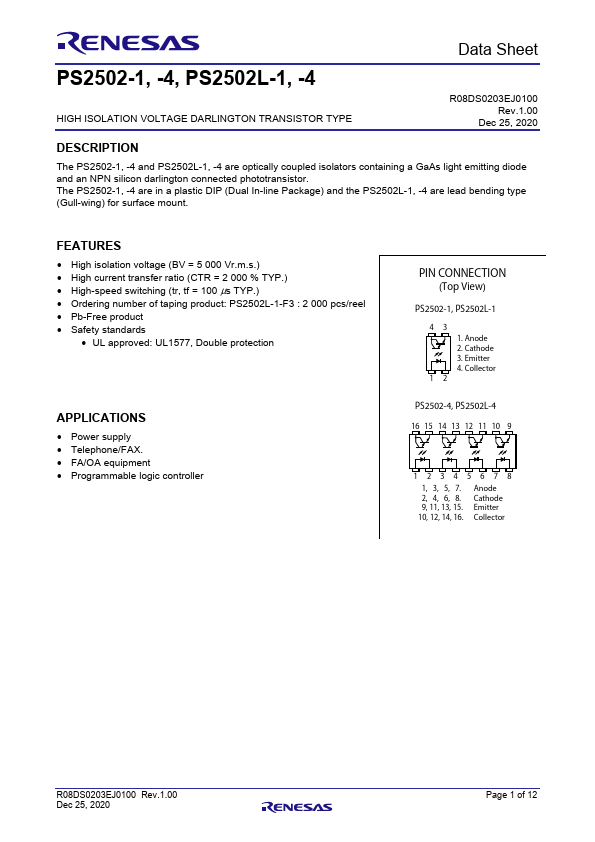

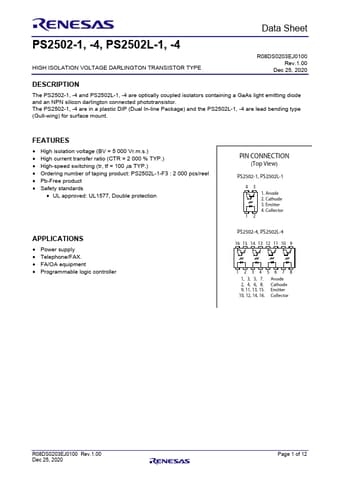

PS2502L-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2502L-4, PS2502-1. Please refer to the document for exact specifications by model.

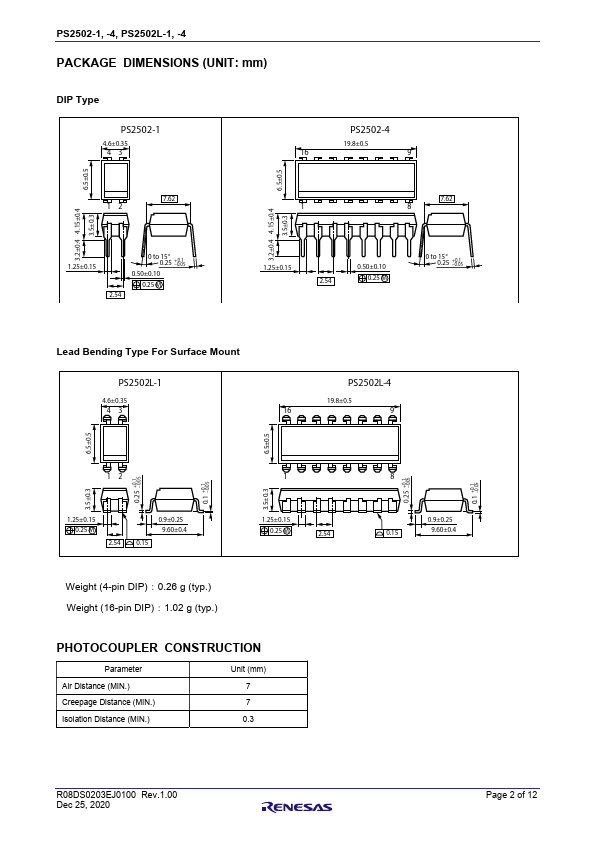

datasheet Preview Page 2

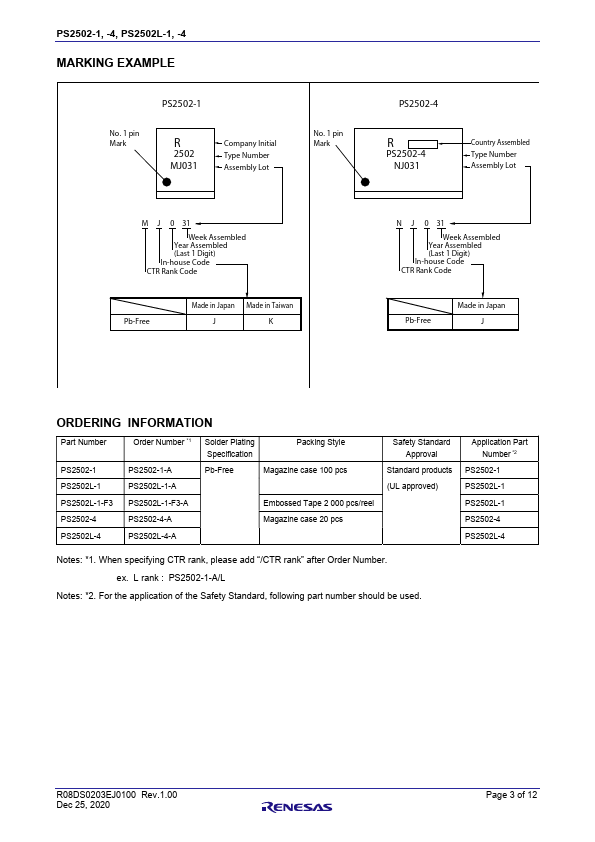

datasheet Preview Page 3

Datasheet Details

Part number	PS2502L-4, PS2502-1
Manufacturer	Renesas ↗
File Size	5.08 MB
Description	HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR
Datasheet	PS2502-1-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: PS2502L-4, PS2502-1. Please refer to the document for exact specifications by model.

PS2502L-4 Product details

Description

The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor.

Features

High isolation voltage (BV = 5 000 Vr. m. s. ).
High current transfer ratio (CTR = 2 000 % TYP. ).
High-speed switching (tr, tf = 100 s TYP. ).
Ordering number of taping product: PS2502L-1-F3 : 2 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: UL1577, Double protection.
