PS2502L-1, PS2502-1 - PHOTOCOUPLER

CEL

📥 Download Datasheet

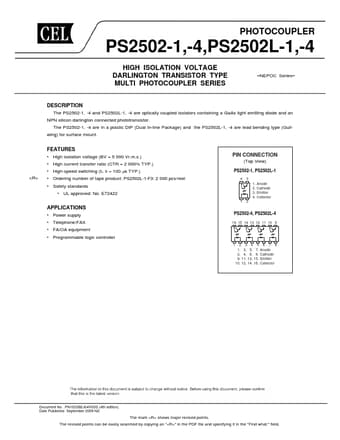

PS2502L-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2502L-1, PS2502-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PS2502L-1, PS2502-1
Manufacturer	CEL
File Size	354.19 KB
Description	PHOTOCOUPLER
Datasheet	PS2502-1-CEL.pdf
Note	This datasheet PDF includes multiple part numbers: PS2502L-1, PS2502-1. Please refer to the document for exact specifications by model.

PS2502L-1 Product details

Description

The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor.The PS2502-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2502L-1, -4 are lead bending type (Gull- wing) for surface mount.

Features

High isolation voltage (BV = 5 000 Vr. m. s. ).
High current transfer ratio (CTR = 2 000% TYP. ).
High-speed switching (tr, tf = 100 µs TYP. ).
Ordering number of tape product: PS2502L-1-F3: 2 000 pcs/reel.
Safety standards.
UL approved: No. E72422.
