ISLA112P50 - 500MSPS A/D Converter

Renesas

📥 Download Datasheet

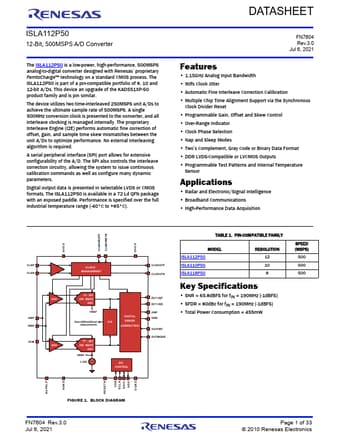

ISLA112P50 Datasheet Preview — Preview of ISLA112P50 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISLA112P50
Manufacturer	Renesas
File Size	1.65 MB
Description	500MSPS A/D Converter
Datasheet	ISLA112P50-Renesas.pdf

ISLA112P50 Product details

Description

. . . . . .

Features

1.15GHz Analog Input Bandwidth.
90fs Clock Jitter.
Automatic Fine Interleave Correction Calibration.
Multiple Chip Time Alignment Support via the Synchronous Clock Divider Reset.
Programmable Gain, Offset and Skew Control.
Over-Range Indicator.
Clock Phase Selection.
Nap and Sleep Modes.
Two’s Complement, Gray Code or Binary Data Format.
DDR LVDS-Compatible or LVCMOS Outputs.
Programmable Test Pat.
