ISLA214P13 14-Bit ADC

ISLA214P13 Description

DATASHEET ISLA214P13, ISLA214P20, ISLA214P25 14-Bit, 250MSPS/200MSPS/130MSPS ADC The ISLA214P is a series of low power, high performance 14-bit analo.
- 72 Ld QFN, LVDS Mode.

ISLA214P13 Features

* Single supply 1.8V operation
* Clock duty cycle stabilizer
* 75fs clock jitter
* 700MHz bandwidth
* Programmable built-in test patterns
* Multi-ADC support - SPI programmable fine gain and offset control - Support for multiple ADC synchronization - O

ISLA214P13 Applications

* Radar array processing
* Software defined radios
* Broadband communications
* High-performance data acquisition
* Communications test equipment AVDD CLKDIV CLKDIVRSTP CLKDIVRSTN OVDD CLKP CLKN CLOCK MANAGEMENT CLKOUTP CLKOUTN VINP VINN VCM SHA 14-BIT

📥 Download Datasheet

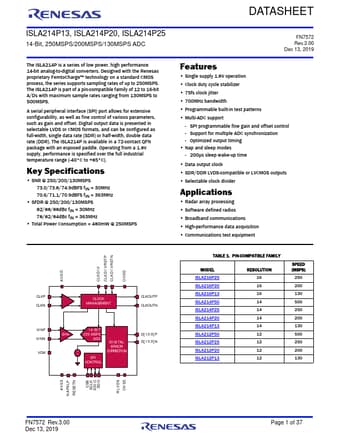

Preview of ISLA214P13 PDF
datasheet Preview Page 2 datasheet Preview Page 3
