ISL95836 - 3+2 Voltage Regulator

Renesas

📥 Download Datasheet

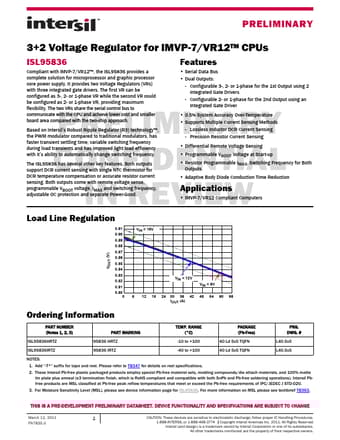

ISL95836 Datasheet Preview — Preview of ISL95836 PDF

Datasheet Details

Part number	ISL95836
Manufacturer	Renesas
File Size	0.96 MB
Description	3+2 Voltage Regulator
Datasheet	ISL95836-Renesas.pdf

ISL95836 Product details

Description

ISL95836 PIN NUMBER SYMBOL DESCRIPTION BOTTOM PAD GND Signal common of the IC.Unless otherwise stated, signals are referenced to the GND pin.In addition, it is the return path for all the low-side MOSFET gate drivers.It should also be used as the thermal pad for heat removal.2 ISEN1G Individual current sensing for VR2 Phase 1. 3 ISEN2G Individual current sensing for VR2 Phase 2. When ISEN2 is pulled to 5V VDD, the controller will disable VR2 Phases 2. 4 NTCG The second thermist

Features

Compliant with IMVP-7/VR12™, the ISL95836 provides a.
Serial Data Bus complete solution for microprocessor and graphic processor.
Dual Outputs: core power supply. It provides two Voltage Regulators (VRs) - Configurable 3-, 2- or 1-phase for the 1st Output using 2 with three integrated gate drivers. The first VR can be integrated Gate Drivers configured as 3-, 2- or 1-phase VR while the second VR could be configured as 2- or 1-phase VR, providing maximum flexibility. Th.
