ISL95831 - 3+1 Voltage Regulator

Intersil

📥 Download Datasheet

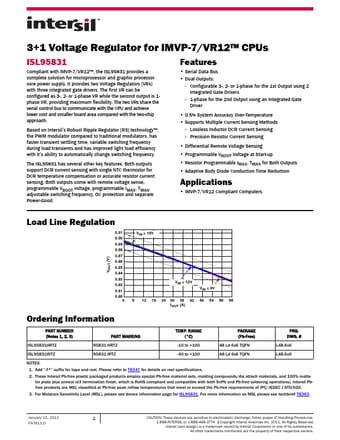

ISL95831 Datasheet Preview — Preview of ISL95831 PDF

Datasheet Details

Part number	ISL95831
Manufacturer	Intersil
File Size	1.91 MB
Description	3+1 Voltage Regulator
Datasheet	ISL95831_Intersil.pdf

ISL95831 Product details

Description

ISL95831 PIN NUMBER BOTTOM PAD 1 2 3 4, 5, 6 7 8 9 10 11 12 13 14 15 SYMBOL DESCRIPTION GND Signal common of the IC.Unless otherwise stated, signals are referenced to the GND pin.It should also be used as the thermal pad for heat removal.VWG A resistor from this pin to COMPG programs the switching frequency for VR2 (8kΩ gives approximately 300kHz).IMONG An analog output.IMONG outputs a current proportional to VR2 output current.PGOODG Power-Good open-drain output indicating when

Features

Both outputs support DCR current sensing with single NTC thermistor for DCR temperature compensation or accurate resistor current sensing. Both outputs come with remote voltage sense, programmable VBOOT voltage, programmable IMAX, TMAX, adjustable switching frequency, OC protection and separate Power-Good. Features.
Serial Data Bus.
Dual Outputs: - Configurable 3-, 2- or 1-phase for the 1st Output using 2 integrated Gate Drivers - 1-phase for the 2nd Output using an Integrate.
