ISL95810 - Single Digitally Controlled Potentiometer

Renesas

📥 Download Datasheet

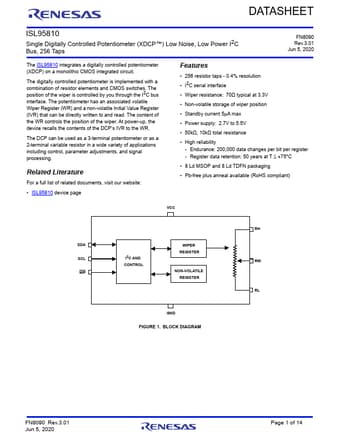

ISL95810 Datasheet Preview — Preview of ISL95810 PDF

Datasheet Details

Part number	ISL95810
Manufacturer	Renesas
File Size	835.10 KB
Description	Single Digitally Controlled Potentiometer
Datasheet	ISL95810-Renesas.pdf

ISL95810 Product details

Description

TSSOP PIN 1 2 3 4 5 6 SYMBOL WP SCL SDA GND RW RL 7 RH 8 VCC DESCRIPTION Hardware write protection.Active low.Prevents any “Write” operation of the I2C interface.I2C interface clock Serial data I/O for the I2C interface Ground “Wiper” terminal of the DCP “Low” terminal of the DCP “High” terminal of the DCP Power supply FN8090 Rev.3.01 Jun 5, 2020 Page 2 of 14 ISL95810 Absolute Maximum Ratings Storage Temperature .

Features

256 resistor taps - 0.4% resolution.
I2C serial interface.
Wiper resistance: 70Ω typical at 3.3V.
Non-volatile storage of wiper position.
Standby current 5µA max.
Power supply: 2.7V to 5.5V.
50kΩ, 10kΩ total resistance.
High reliability - Endurance: 200,000 data changes per bit per register - Register data retention: 50 years at T  +75°C.
8 Ld MSOP and 8 Ld TDFN packaging.
Pb-free plus anneal available (R.
