ISL84525, ISL84524 - 4 to 1 Multiplexer and DPDT Analog Switches

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL84525, ISL84524. Please refer to the document for exact specifications by model.

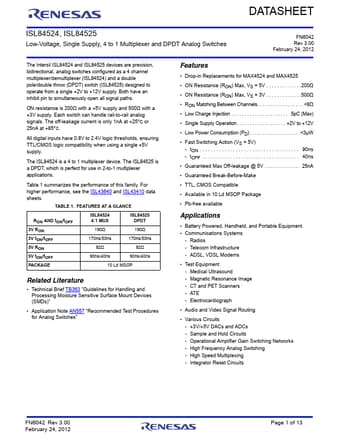

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ISL84525, ISL84524
Manufacturer Renesas
File Size 639.52 KB
Description 4 to 1 Multiplexer and DPDT Analog Switches
Datasheet download datasheet ISL84524-Renesas.pdf
Note This datasheet PDF includes multiple part numbers: ISL84525, ISL84524.
Please refer to the document for exact specifications by model.

ISL84525 Product details

Description

PIN FUNCTION V+ System Power Supply Input (+2V to +12V) GND Ground Connection INH Digital Control Input.Connect to GND for Normal Operation.Connect to V+ to turn all switches off.COM Analog Switch Common Pin NOX Analog Switch Normally Open Pin NCX Analog Switch Normally Closed Pin ADDX Address Input Pin ISL84525 (MSOP) TOP VIEW NO1 1 COM1 2 NC1 3 INH 4 GND 5 LOGIC 10 V+ 9 COM2 8 NO2 7 NC2 6 ADD DPDT Ordering Information PART # (Notes 2, 3, 4) PART MARKING TEMP.RANGE (°C)

Features
