ISL84521 - Analog Switches

Renesas

📥 Download Datasheet

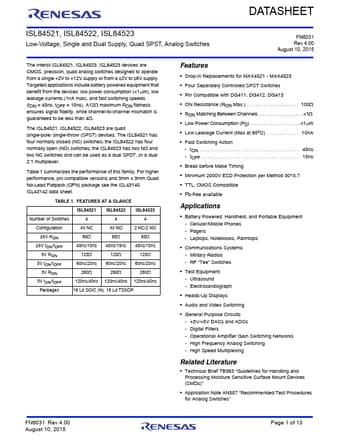

ISL84521 Datasheet Preview — Preview of ISL84521 PDF

Datasheet Details

Part number	ISL84521
Manufacturer	Renesas
File Size	686.74 KB
Description	Analog Switches
Datasheet	ISL84521-Renesas.pdf

ISL84521 Product details

Description

PIN FUNCTION V+ Positive Power Supply Input V- Negative Power Supply Input.Connect to GND for Single Supply Configurations.GND Ground Connection IN Digital Control Input COM Analog Switch Common Pin NO Analog Switch Normally Open Pin NC Analog Switch Normally Closed Pin N.C.No Internal Connection Ordering Information PART NO.(Note 2) TEMP.RANGE (oC) PACKAGE (RoHS Compliant) ISL84521IBZ -40 to 85 16 Ld SOIC (N) ISL84521IVZ -40 to 85 16 Ld TSSOP ISL84522IBZ

Features

AT A GLANCE ISL84521 ISL84522 ISL84523 Number of Switches 4 4 4 Configuration 5V RON 5V tON/tOFF 5V RON 5V tON/tOFF 3V RON 3V tON/tOFF Packages All NC All NO 2 NC/2 NO 65 65 65 45ns/15ns 45ns/15ns 45ns/15ns 125 125 125 60ns/20ns 60ns/20ns 60ns/20ns 260 260 260 120ns/40ns 120ns/40ns 120ns/40ns 16 Ld SOIC (N), 16 Ld TSSOP Features.
Drop-in Replacements for MAX4521 - MAX4523.
Four Separately Controlled SPST Switches.
Pin Compatible with DG.
