ISL84514 - Analog Switches

📥 Download Datasheet

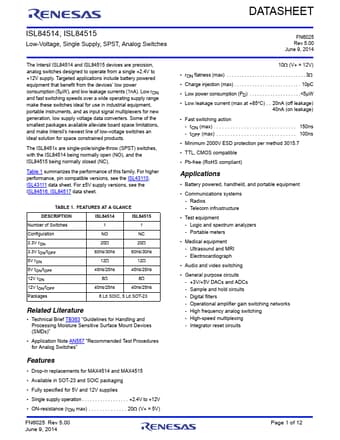

Preview of ISL84514 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ISL84514
Manufacturer Renesas
File Size 609.15 KB
Description Analog Switches
Datasheet download datasheet ISL84514-Renesas.pdf

ISL84514 Product details

Description

ISL84514 ISL84515 Number of Switches 1 1 Configuration NO NC 3.3V rON 3.3V tON/tOFF 5V rON 5V tON/tOFF 12V rON 12V tON/tOFF Packages 20 20 60ns/30ns 60ns/30ns 12 12 45ns/25ns 45ns/25ns 8 8 40ns/25ns 40ns/25ns 8 Ld SOIC, 5 Ld SOT-23 Related Literature Technical Brief TB363 “Guidelines for Handling and Processing Moisture Sensitive Surface Mount Devices (SMDs)” Application Note AN557 “Recommended Test Procedures for Analog Switches”

Features
