ISL78235 - 5A Automotive Synchronous Buck Regulator

ISL78235 Description

ISL78235 5A Automotive Synchronous Buck Regulator The ISL78235 is a highly efficient, monolithic, synchronous step-down DC/DC converter that can deliv.

ISL78235 Features

* a 1ms Power-Good (PG) timer at power-up. When in shutdown, the ISL78235 discharges the output capacitor through an internal 100Ω soft-stop switch. Other features include internal fixed or adjustable soft-start and internal/external compensation. The ISL78235 is available in a 3mmx3mm 16 Ld Thin Quad

ISL78235 Applications

* DC/DC POL modules
* μC/µP, FPGA, and DSP power
* Video processor/SOC power
* Automotive infotainment power EN FS SS COMP L VIN PHASE PHASE PHASE 2.7V TO 5.5V COUT CIN 16 15 14 13 VIN 1 VDD 2 PG 3 SYNC 4
* ISL78235 PGND 12 PGND 11 SGND 10 FB 9 5 6 7 8

📥 Download Datasheet

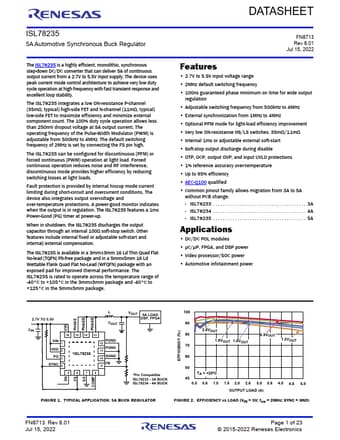

Preview of ISL78235 PDF
