ISL78233 - 3A and 4A Compact Synchronous Buck Regulators

ISL78233 Description

DATASHEET ISL78233, ISL78234 3A and 4A Compact Synchronous Buck Regulators FN8359 Rev.11.01 Jun 16, 2022 The ISL78233 and ISL78234 are highly effic.

ISL78233 Features

* include internal fixed or adjustable soft-start and internal/external compensation. The ISL78233 and ISL78234 are available in a 3mmx3mm 16 Ld Thin Quad Flat (TQFN) Pb-free package and in a 5mmx5mm 16 Ld Wettable Flank Quad Flat No-Lead (WFQFN) package with an exposed pad for improved thermal perfor

ISL78233 Applications

* DC/DC POL modules
* μC/µP, FPGA, and DSP power
* Video processor/SOC power
* Li-ion battery powered devices
* Automotive infotainment power EFFICIENCY (%) 100 3.3VOUT 90 80 70 2.5VOUT 1.2VOUT 60 1.5VOUT 1.8VOUT 50 40 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

📥 Download Datasheet

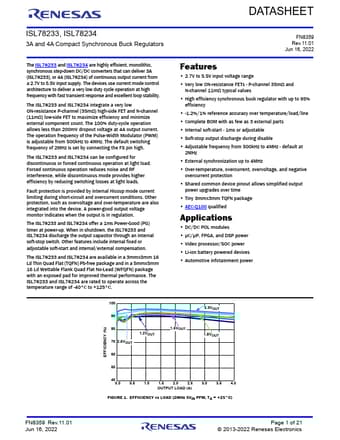

Preview of ISL78233 PDF
