ISL78841ASEH - High Performance Industry Standard Single-Ended Current Mode PWM Controller

Download the ISL78841ASEH datasheet PDF (ISL78840ASEH included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high performance industry standard single-ended current mode pwm controller.

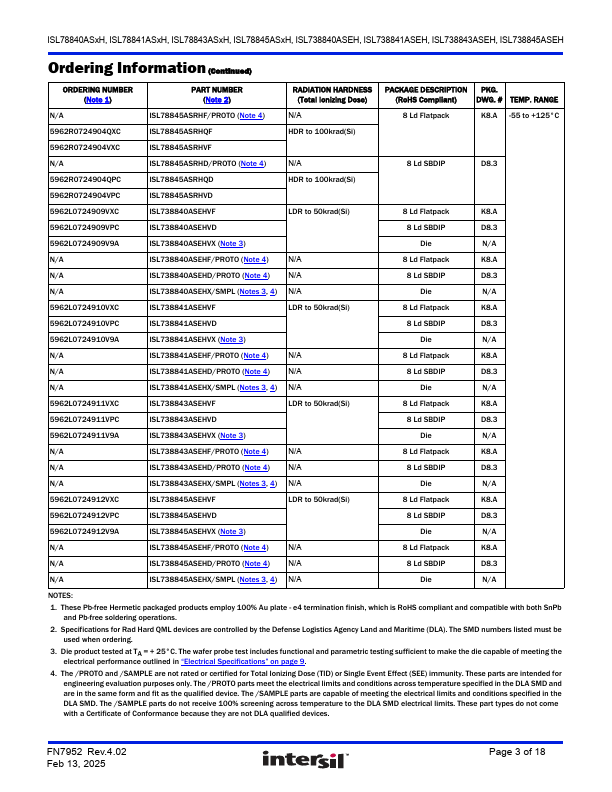

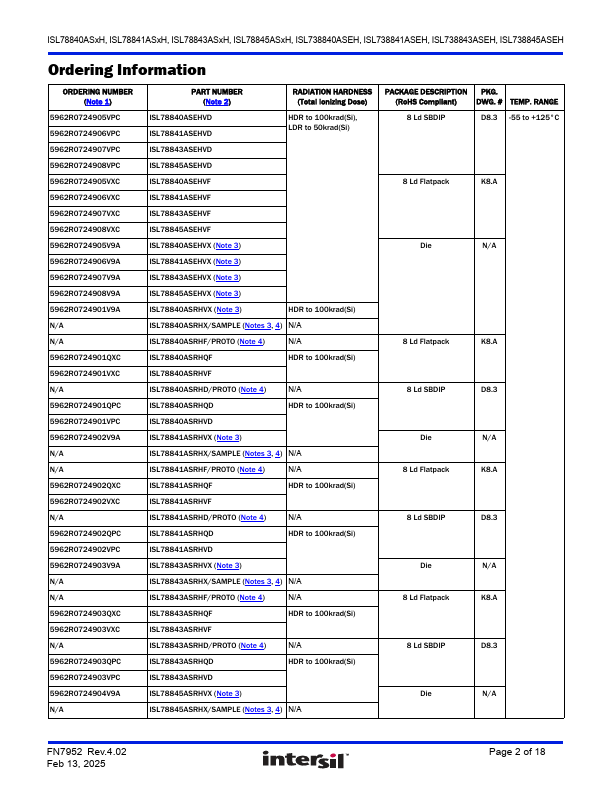

Description

PKG.

(RoHS Compliant) DWG.

# TEMP.

Features

  • include up to 13.2V operation, low operating current, 90µA typical start-up current, adjustable operating frequency to 1MHz and high peak current drive capability with 50ns rise and fall times.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISL78840ASEH-Intersil.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ISL78010 - Automotive Grade TFT-LCD Power Supply (Renesas)
  • ISL78020 - Automotive Grade TFT-LCD DC/DC (Renesas)
  • ISL78022 - Automotive Grade TFT-LCD DC/DC (Renesas)
  • ISL78083 - Automotive Camera Power Management (Renesas)
  • ISL78100 - High Power LED Driver (Renesas)
  • ISL78113A - Low Input Voltage and High Efficiency Synchronous Boost Converter (Renesas)
  • ISL78171 - 50mA Automotive LED Driver (Renesas)
  • ISL78200 - 2.5A Regulator (Renesas)
  • ISL78201 - 40V 2.5A Regulator (Renesas)
  • ISL78205 - 2.5A Buck Controller (Renesas)
Other Datasheets by Intersil
  • ISL78841ASRH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78840ASEH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78840ASRH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78843ASEH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78843ASRH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78845ASEH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78845ASRH - High Performance Industry Standard Single-Ended Current Mode PWM Controller
  • ISL78223 - ZVS Full-Bridge PWM Controller

Full PDF Text Transcription

Click to expand full text

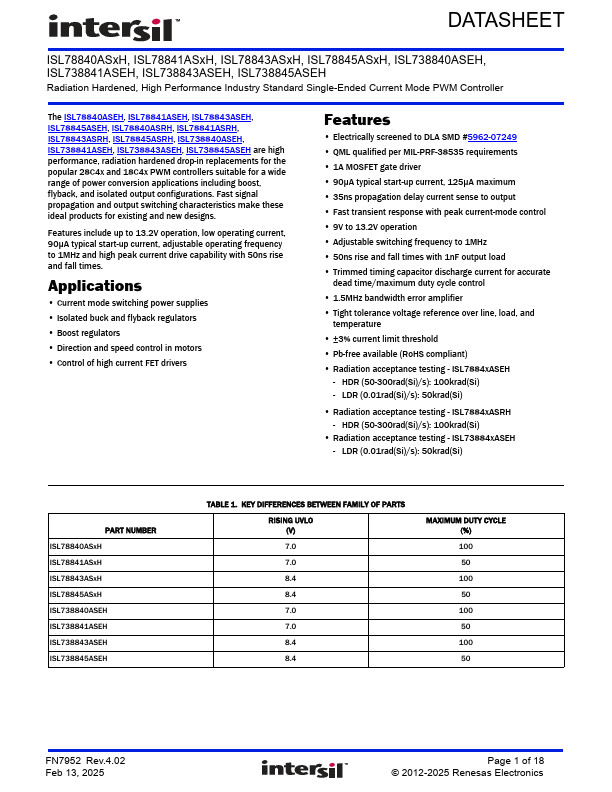

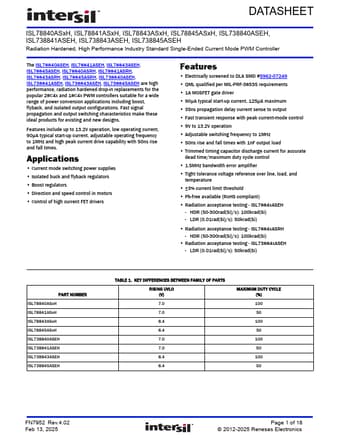

DATASHEET ISL78840ASxH, ISL78841ASxH, ISL78843ASxH, ISL78845ASxH, ISL738840ASEH, ISL738841ASEH, ISL738843ASEH, ISL738845ASEH Radiation Hardened, High Performance Industry Standard Single-Ended Current Mode PWM Controller The ISL78840ASEH, ISL78841ASEH, ISL78843ASEH, ISL78845ASEH, ISL78840ASRH, ISL78841ASRH, ISL78843ASRH, ISL78845ASRH, ISL738840ASEH, ISL738841ASEH, ISL738843ASEH, ISL738845ASEH are high performance, radiation hardened drop-in replacements for the popular 28C4x and 18C4x PWM controllers suitable for a wide range of power conversion applications including boost, flyback, and isolated output configurations. Fast signal propagation and output switching characteristics make these ideal products for existing and new designs. Features include up to 13.
