IDTCV145 - 1-TO-19 DIFFERENTIAL CLOCK BUFFER

Name: IDTCV145
SKU: IDTCV145-1527958

Renesas

📥 Download Datasheet

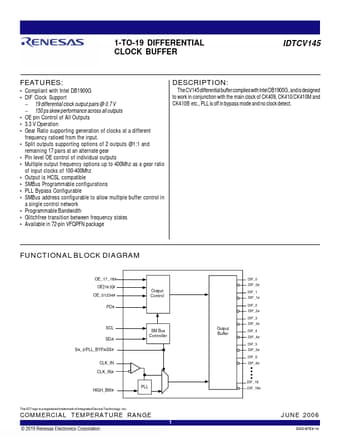

IDTCV145 Datasheet Preview — Preview of IDTCV145 PDF

Datasheet Details

Part number	IDTCV145
Manufacturer	Renesas
File Size	245.75 KB
Description	1-TO-19 DIFFERENTIAL CLOCK BUFFER
Datasheet	IDTCV145-Renesas.pdf

IDTCV145 Product details

Description

The CV145 differential buffer complies with Intel DB1900G , and is designed to work in conjunction with the main clock of CK409, CK410/CK410M and CK410B etc., PLL is off in bypass mode and no clock detect.

Features

Compliant with Intel DB1900G.
DIF Clock Support.
19 differential clock output pairs @ 0.7 V.
150 ps skew performance across all outputs.
OE pin Control of All Outputs.
3.3 V Operation.
Gear Ratio supporting generation of clocks at a different frequency ratioed from the input.
Split outputs supporting options of 2 outputs @1:1 and remaining 17 pairs at an alternate gear.
Pin level OE control of individual outputs.
