IDTCV109E - CLOCK GENERATOR FOR DESKTOP PC PLATFORMS

📥 Download Datasheet

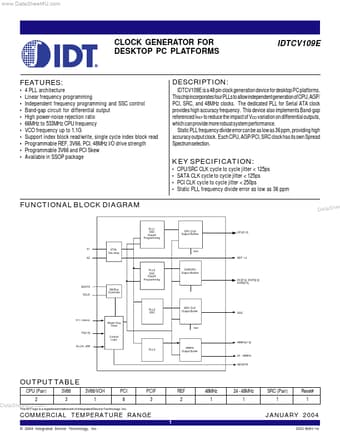

Preview of IDTCV109E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number IDTCV109E
Manufacturer Integrated Device Technology
File Size 214.76 KB
Description CLOCK GENERATOR FOR DESKTOP PC PLATFORMS
Datasheet download datasheet IDTCV109E_IntegratedDeviceTechnology.pdf

IDTCV109E Product details

Description

4 PLL architecture Linear frequency programming Independent frequency programming and SSC control Band-gap circuit for differential output High power-noise rejection ratio 66MHz to 533MHz CPU frequency VCO frequency up to 1.1G Support index block read/write, single cycle index block read Programmable REF, 3V66, PCI, 48MHz I/O drive strength Programmable 3V66 and PCI Skew Available in SSOP package IDTCV109E is a 48 pin clock generation device for desktop PC platforms.This chip incorporates fo
