HIP0084, HIP0082 Quad Power Driver

HIP0084 Description

DATASHEET HIP0082, HIP0084 Quad Power Drivers with Serial Diagnostic Interface .
The HIP0082 and HIP0084 Quad Power Drivers contain four individually protected NDMOS transistor switches to drive inductive and resistive loads such a.

HIP0084 Features

* Low Side Power MOSFET Output Drivers - Output Voltage Clamp (Typ)
* . . 80V - Maximum Output Current
* . 5A/2A - Output rDS(ON) (TJ = 150oC) (Max) . . . . 0.57/0.62
* Controlled Slew Rate Switching (HIP0084)
* Single Pu

HIP0084 Applications

* Drivers For - Solenoids - Relays - Power Output - Lamps - Injectors - Steppers - Motors - Displays

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HIP0084, HIP0082. Please refer to the document for exact specifications by model.

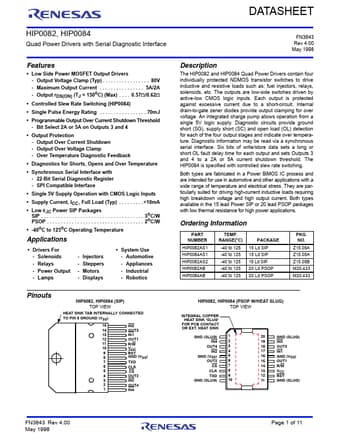

datasheet Preview Page 2 datasheet Preview Page 3
