HIP0081, HIP0080 Quad Inverting Power Driver

HIP0081 Description

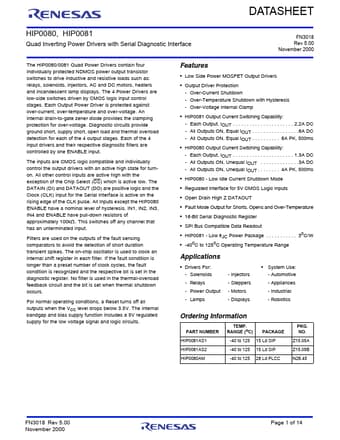

DATASHEET HIP0080, HIP0081 Quad Inverting Power Drivers with Serial Diagnostic Interface FN3018 Rev 5.00 November 2000 The HIP0080/0081 Quad Power .

HIP0081 Features

* Low Side Power MOSFET Output Drivers
* Output Driver Protection - Over-Current Shutdown - Over-Temperature Shutdown with Hysteresis - Over-Voltage Internal Clamp
* HIP0081 Output Current Switching Capability: - Each Output, IOUT
* . . 2.2A

HIP0081 Applications

* Drivers For: - Solenoids - Relays - Power Output - Lamps - Injectors - Steppers - Motors - Displays
* System Use: - Automotive - Appliances - Industrial - Robotics Ordering Information PART NUMBER HIP0081AS1 TEMP. RANGE (oC) PACKAGE -40 to 125 15 Ld SIP HIP0081AS2 -40 to 1
