HIP2500 Half Bridge 500VDC Driver

HIP2500 Description

Semiconductor July 1998 BSO SO S E E OC , PR NS, SE N W G I RA ES ITHD NEW D IR2112 W T NO IR2110, 13 PAR IR21 LET E HIP2500 Half Bridge 500VDC D.
The HIP2500 is a high voltage integrated circuit (HVIC) optimized to drive N-Channel MOS gated power devices in half bridge topologies.

HIP2500 Features

* Maximum Rating
* . . . . 500V
* Ability to Interface and Drive N-Channel Power Devices
* Floating Bootstrap Power Supply for Upper Rail Drive
* CMOS Schmitt-Triggered Inputs with Hysteresis and Pull-Down
* Up to 400kHz Opera

HIP2500 Applications

* The SD pin allows external shutdown of gate drive to both upper and lower gate outputs. Undervoltage lockout will not allow gating when the bias voltage is too low to drive the external switches into saturation. The HIP2500IP is pin and function compatible to the International Rectifier IR2110. The

📥 Download Datasheet

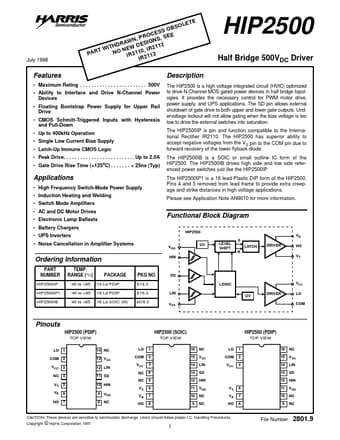

Preview of HIP2500 PDF
