HIP2105 Low Voltage Driver

HIP2105 Description

DATASHEET HIP2105, HIP2106A Low Voltage Driver for Synchronous Rectification The HIP2105 and HIP2106A are high frequency MOSFET drivers optimized to .

HIP2105 Features

* an input that recognizes a high-impedance state, working together with Renesas multi-phase 3.3V or 5V PWM controllers to prevent negative transients on the controlled output voltage when operation is suspended. This feature eliminates the need for the Schottky diode that may be used in a power syste

HIP2105 Applications

* Each driver is capable of driving a 3nF load with less than 15ns rise/fall time. Bootstrapping of the upper gate driver is implemented using an internal low forward voltage drop diode, reducing implementation cost, complexity, and allowing the use of higher performance, cost effective N-channel MOS

📥 Download Datasheet

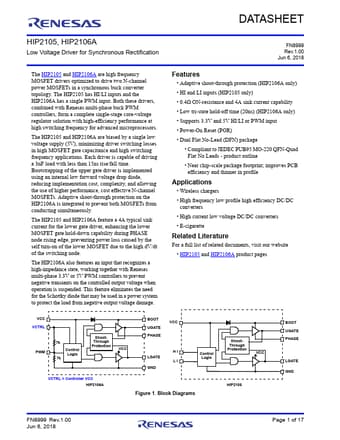

Preview of HIP2105 PDF
